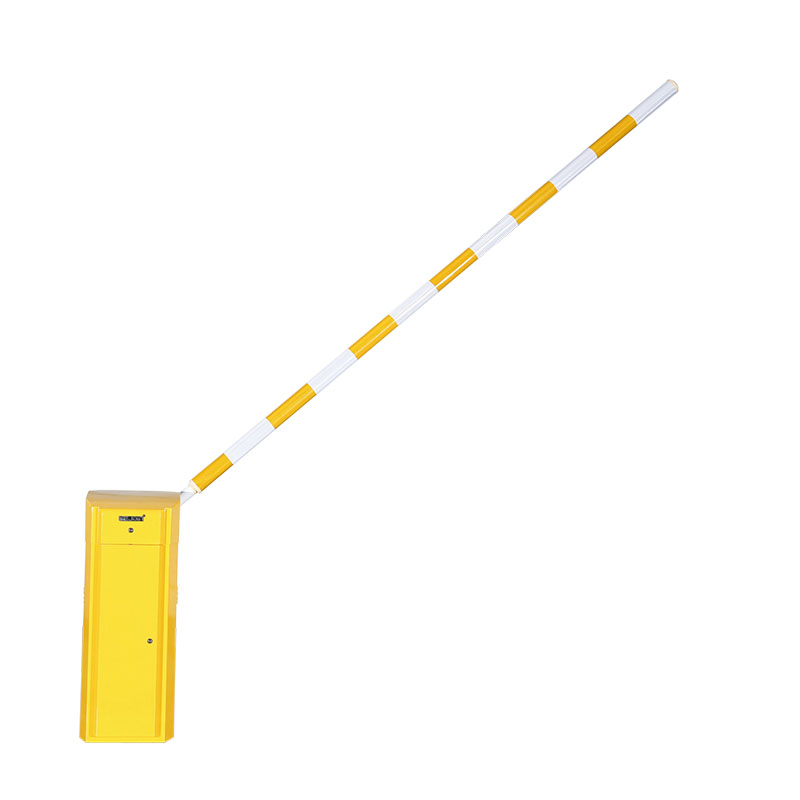

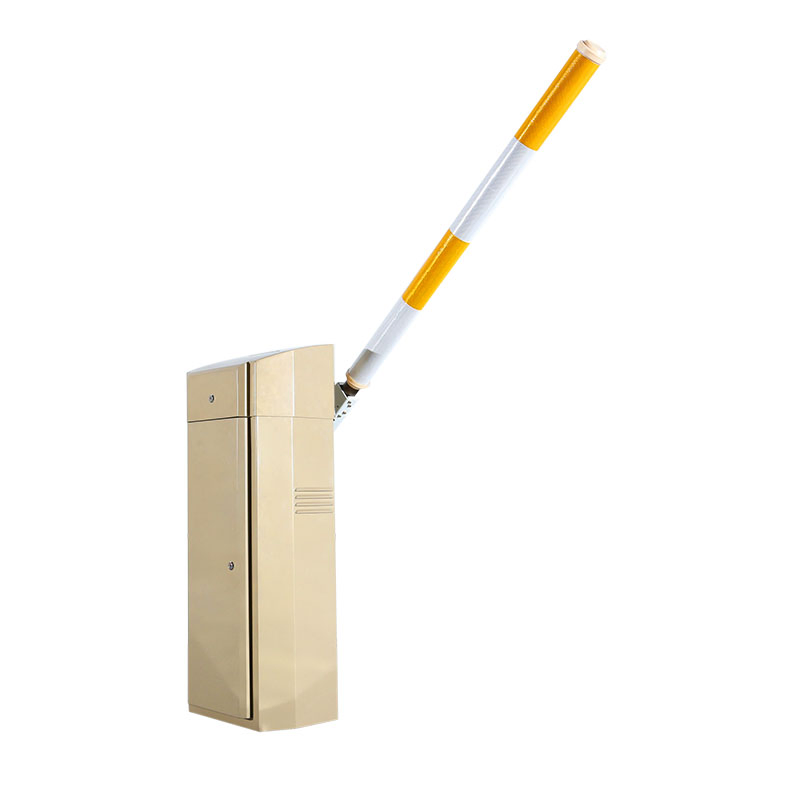

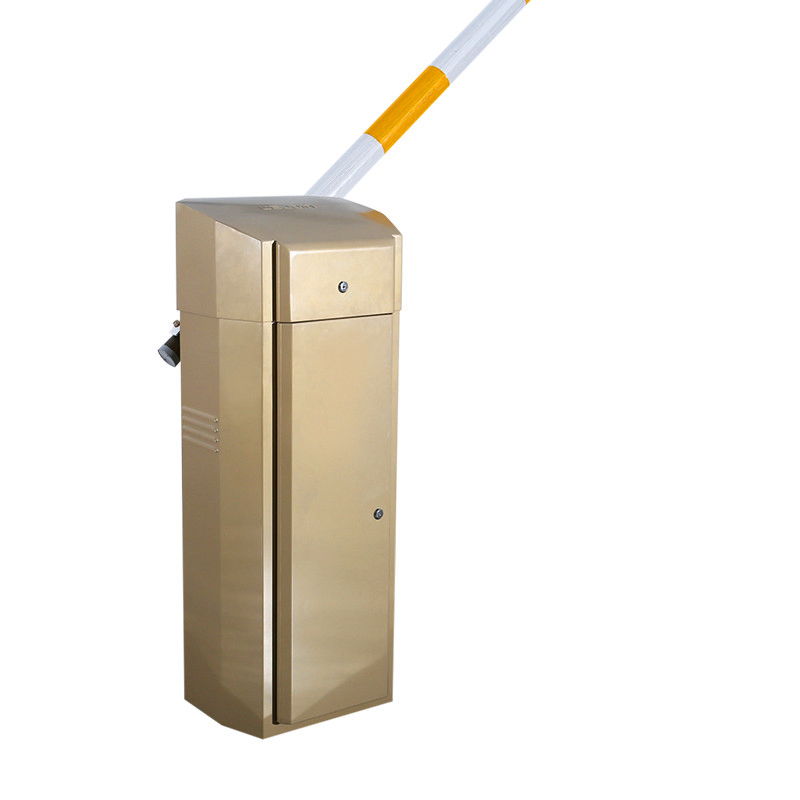

Wejoin Commercial Variable Frequency Traffic Barrier for Parking Lot
WEJOIN Commercial Variable Frequency Traffic Barrier for Parking Lot Product ApplicationSuitable for indoor as well as outdoor parking area Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc. Co......
Send Inquiry
Product Description
Product Application
Suitable for indoor as well as outdoor parking area Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.
Open/close speed is adjustable
Buffer and slow down when arm goes to limit position
Intelligent control and further customized development
Menu type control panel
In auto mode, speed can change automatically according to traffic flow
TCP/IP online is optional

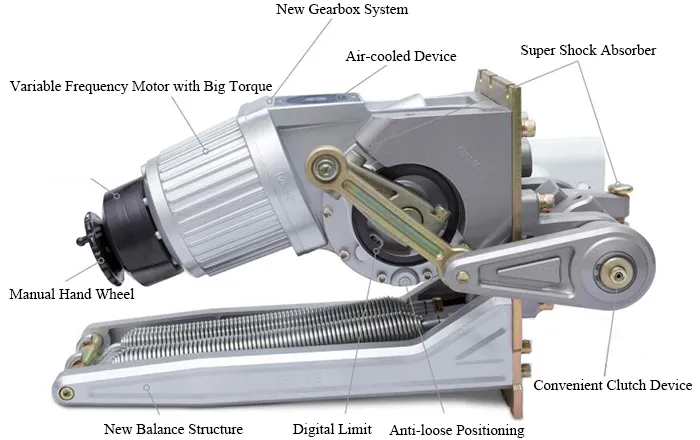

Advanced Features
- Powerful Commercial Variable Frequency Controller
- Cabinet adopts electroplating and double-layer painting process
- Safer: New upgrade of auto reversing function
- New Balanced Structure: Soft Touch and Zero Pressure
- Subatantially reduce the damage to the vehicle and people
- Hit but won't hurt the car
- Round foaming arm complete protect
- Solve the vehicle be damaged by hitting
- Variable frequency barrier works more smoothly than standard barrier models
- And its operation life lasts 30% longer than the standard models
| Working Temperature | -35ºC~+85ºC |
| Power supply | AC 220V±10%, 110V±10%, 50/60HZ |
| Power consumption | 300W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m (open without interference) |
| Insulation grade | F |
| Parameter choose | direction, length, style of arm |
Operation Time Table (take straight arm as example)
| Boom type (m) | Open / close speed (s) | Time from open to close (s) |
| big type arm ≥6 | 2.5 | 4.5 |
| big type arm 4.5-6 | 1.8 | 3.8 |
| middle type arm 4-4.5 | 1.5 | 3.3 |
| middle type arm 3.5 | 1.2 | 2 |
| middle type arm 3 | 0.9 | 1.8 |
Note: 1. Open / close speed refers to the time it takes for the boom to rise from horizontal position to 70 degree angle;
2.Select the proper speed for the boom according to its type and length;
3. Please select the proper balance spring specification according to the boom type and boom length.
Optional Arm Type And Arm Color
Anti-collision round foaming arm( gold, red & white, folding arm is optional)
Square arm (red & white, blue & white, both sides can fix rubber, folding arm is optional)
Middle size octagonal arm (red & white, bronze blue, telescopic arm is optional)
Big size octagonal arm (red&white,bronze blue, red&sliver, orange&black, yellow &black, telescopic arm is optional)
E1 Two fencing arm(red&white,bronze blue,orange&black, yellow &black)
E2 Three fencing arm(red&white,bronze blue,orange&black, yellow &black)
90 degree / 180 degree arm ( red&white,bronze blue, orange&black, yellow &black)

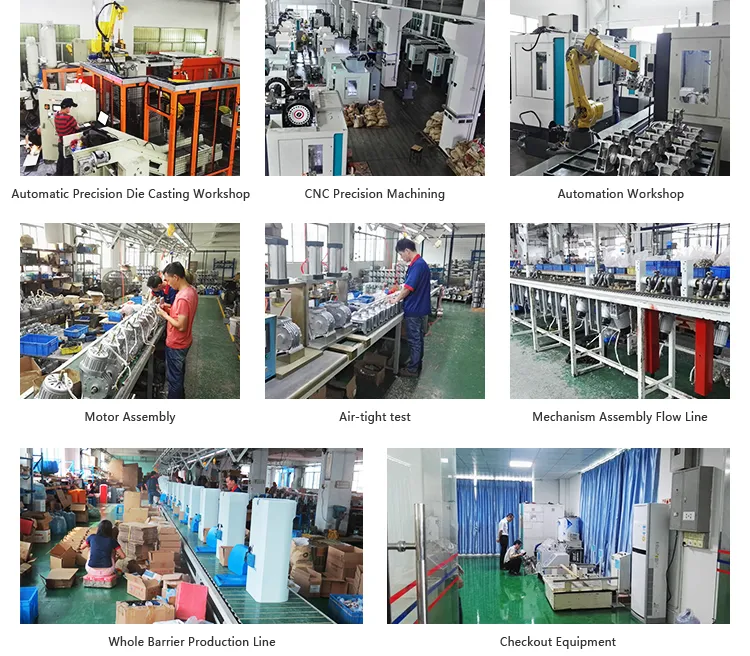

WEJOIN Manufaturing Technique
