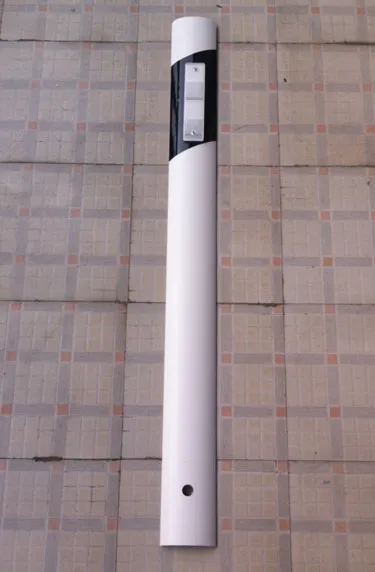

U Shape Slice Type Delineator

Product Description

U Shape Slice Type Delineator

size: 100*1100mm
thickness 4mm
material: PVC
reflector color: yellow or white
reflector size: 4*18cm

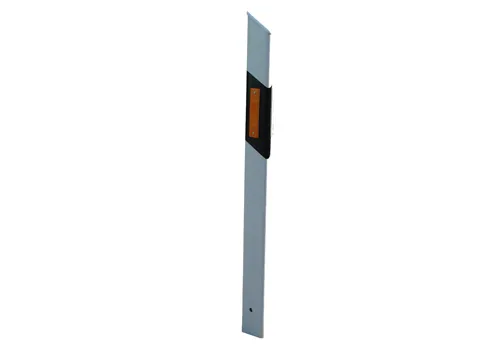

Roadside Delineator Post

material	flexible PVC for post
size	1001001100mm high
reflector size	4cm*18cm
reflector material	PMMA
color	white for post; reflector color avilable: yellow white or red

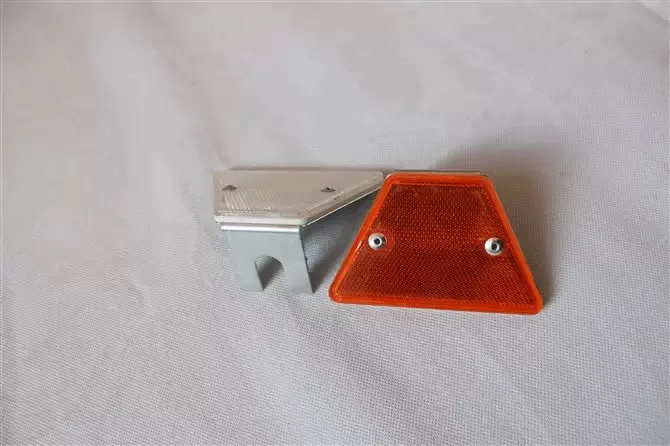

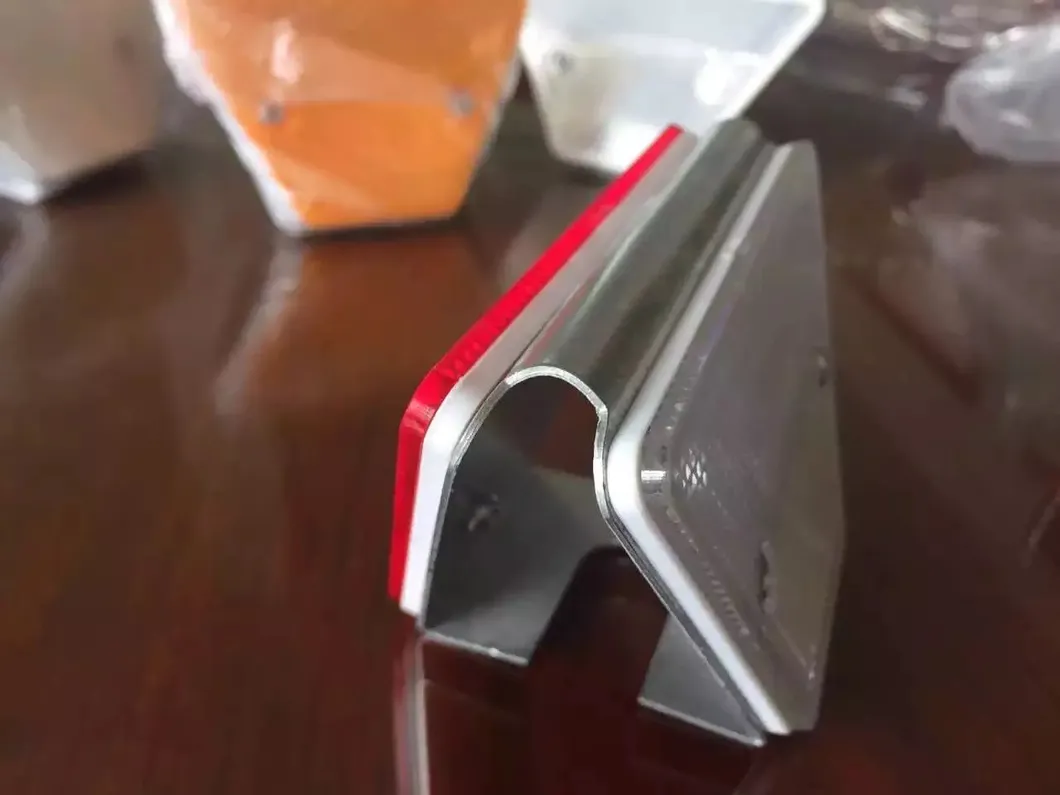

Trapeziform Guardrail attached Delineator Reflector

single side reflective
single side bracket with attached designs to express way as reflector delineation function only/
size: 50*70*120mm
bracket: zin dip aluminum sheet 1 1.5 2mm thickness
color of reflectors: yellow white or red

one 20' can load 100 000pcs MDB-1 delineator
U Shape Slice Type Delineator

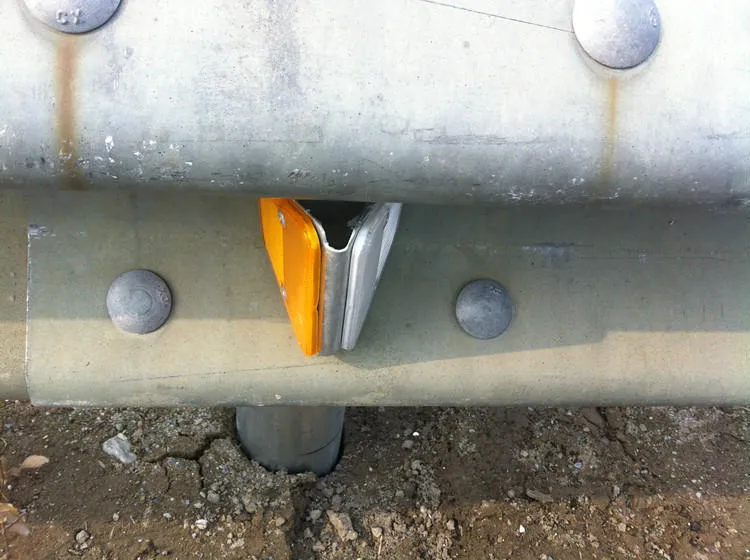

USAGE AND INSTALLATION PICTURES:
U Shape Slice Type Delineator

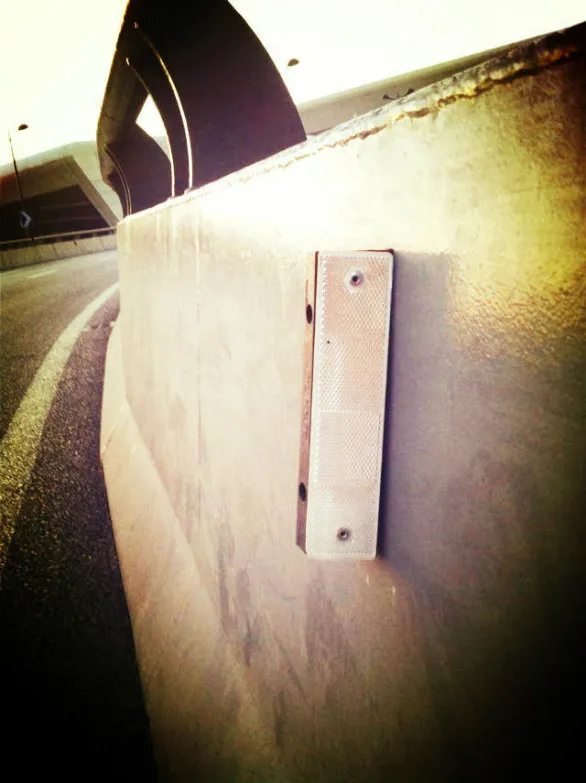

Rectangle Delineator
size: 180*40mm
color of reflectors: white or yellow
reflector material: PMMA
bracket material: PP
bracket color: black
installation way: by small expanding bolts.

FUNCTION AND EFFECTIONS INSTALLED ON THE WALL
U Shape Slice Type Delineator
