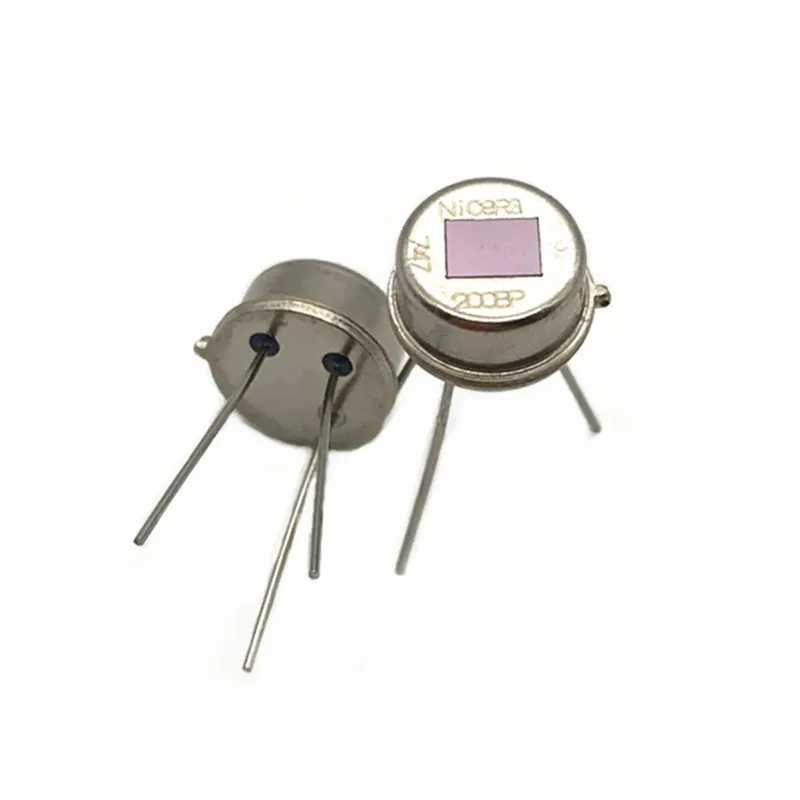

Nicera Human Body Infrared Pyroelectric Sensors Re200b

Product Description

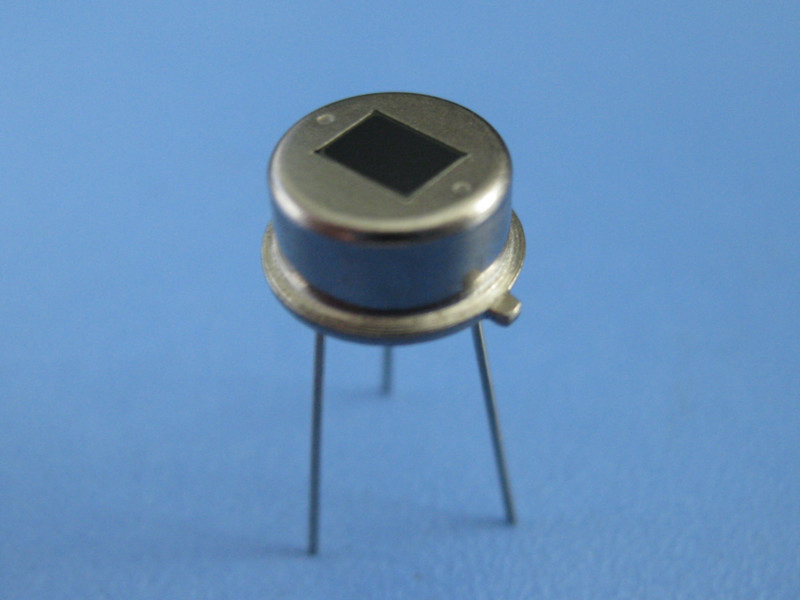

Nicera human body infrared pyroelectric sensors Re200B

Product Description
The pyroelectric infrared sensor detects infrared radiation on the basis of the characteristics that the polarization of pyroelectric material changes with temperature. Dual compensated sensing elements are applied to suppress the interference resulting from temperature variation. As a result, the operating stability of the sensor is greatly improved Our products can be used in many applications.

Parameter:

IR Receiving Electrode	2*1mm, 2elements
Window Size	3*4mm
Spectral Response	5-14um
Transmittance	> 75%
Output Signal[Vp-p]	> 3300mV
Detectivity (D*)	1.4*108 cmHz1/2/W
Noise[Vp-p]:	70mV
Output Balance:	10%
Offset Voltage:	0.3-1.2V
Supply Voltage	3-15V

Operating Temp: -30-70Celsius degree
Storage Temp: -40-80Celsius degree

Applications:
1. Security systems
2. Burglar alarms
3. Visitor acknowledgement
4. Light switch control
5. Intellectualized toy

Feature:
1. High sensitivity
2. Long detecting distance
3. Wide angle
4. Strong stability
5. Wide application fields
