            Product Description

            Air Surveillance Radar
            ASR 223-5C1K-3D / C band


            ASR 223-5C1K-3D is a security surveillance radar, which is the same type of radar as ASR 223-1C1K which is a phased array radar with advanced technology and stable performance developed for the detection of low flying drones.

            The difference is that ASR 223-1C1K is a single-array radar, while ASR 223-4C1K-3D is a four-array radar, as well as equipped with height finding radar.

            Features

            -- High data rate and high positioning accuracy
            -- Multi-Input Multi-Output (MIMO) system
            -- All-weather adaptability


            Application
            Airports, military bases, border areas and other key areas security surveillance



            Specification

            ItemSpecification
            Working modePhased array + Pulse Doppler
            Working frequencyC band (5.5-5.8GHz)
            Detection range1.2km (DJI Phantom 3/4," Mavic", RCS≈0.01 square meter)
            Minimum detection range≤100m
            Azimuth coverage4-panel: 360°+ ( Height Detection Radar 3D)
            Elevation coverage40°
            Distance accuracy≤10m
            Azimuth Accuracy≤1.0°
            Target detection speed0.2m/s - 25m/s
            Speed precision≤0.2m/s
            Data rate≤1.5s
            Peak Output4W/Panel
            Net weight≤70kg
            Power supplyAC220V/250W
            InterfaceEthernet (UDP protocol)
            Dimension725mm X 725mm X 735 mm (2D)
            725mm X 725mm X 1400 mm (3D)
            Working  temperature-40 ºC  ~ +60 ºC
            Working EnvironmentRain-proof; Dust Prevention; Sand-prevention; Moisture-proof, Mould-proof and Salt-proof

            For more details, please visit:   a5250379796602ad.en.made-in-china.com

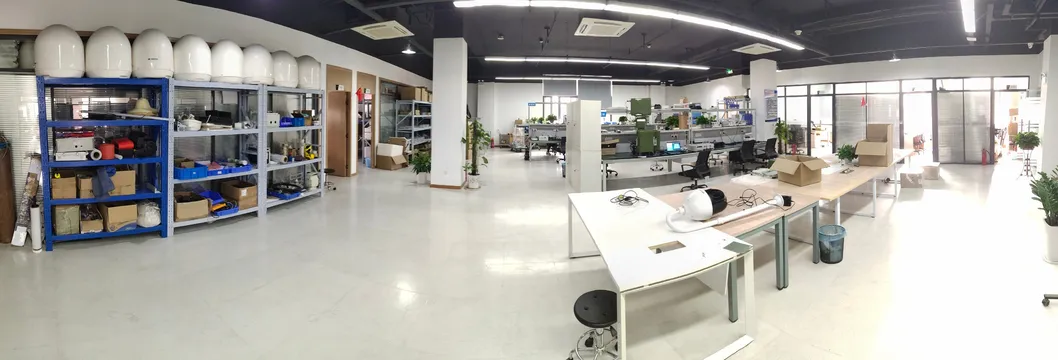

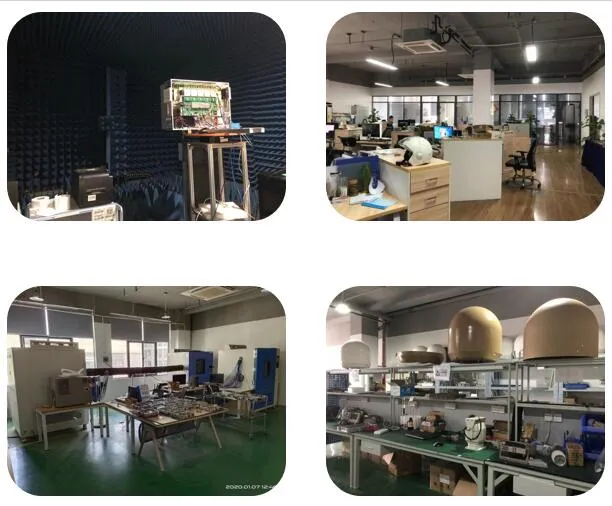

            Factory preview
            Medium Range Land Surveillance Radar to Detect Intruders in Real-Time for Critical Facilities to Detect Unwanted Intruders and Stop Them at The Perimeter
            Medium Range Land Surveillance Radar to Detect Intruders in Real-Time for Critical Facilities to Detect Unwanted Intruders and Stop Them at The Perimeter
            Medium Range Land Surveillance Radar to Detect Intruders in Real-Time for Critical Facilities to Detect Unwanted Intruders and Stop Them at The Perimeter

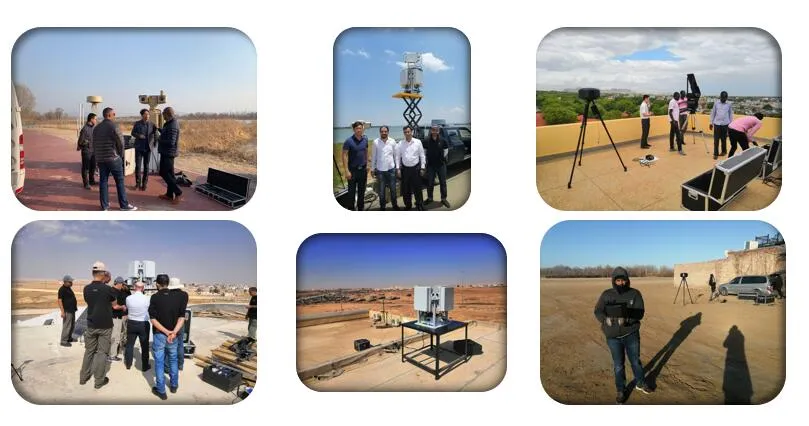

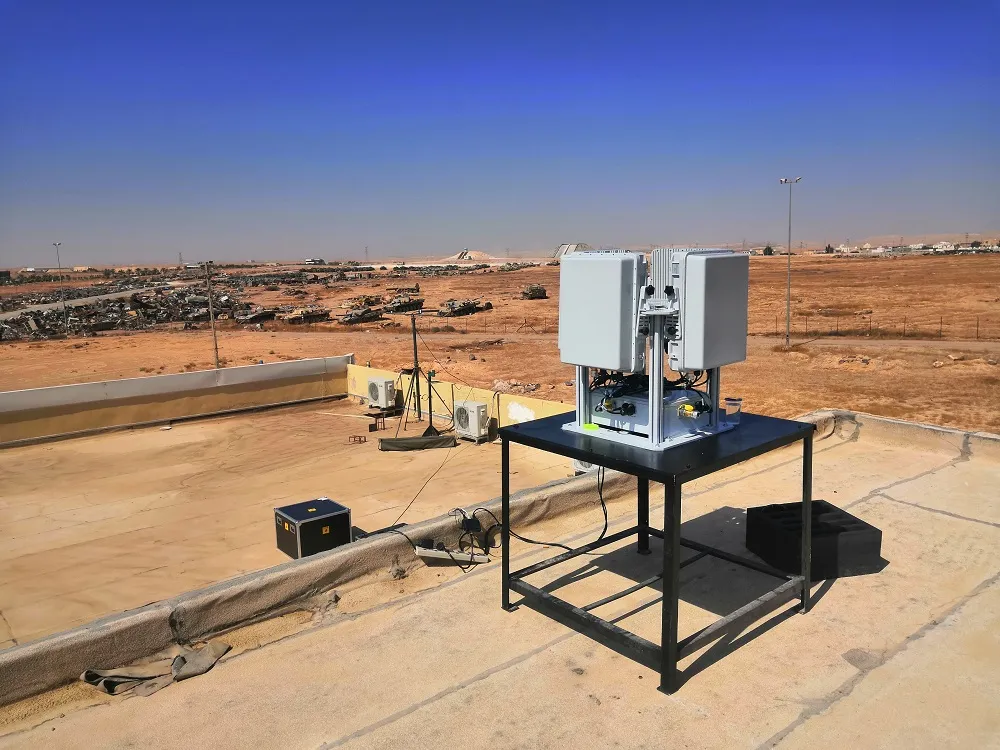

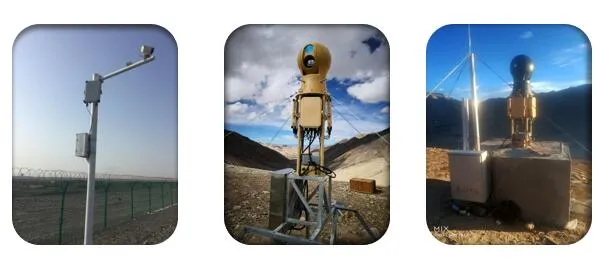

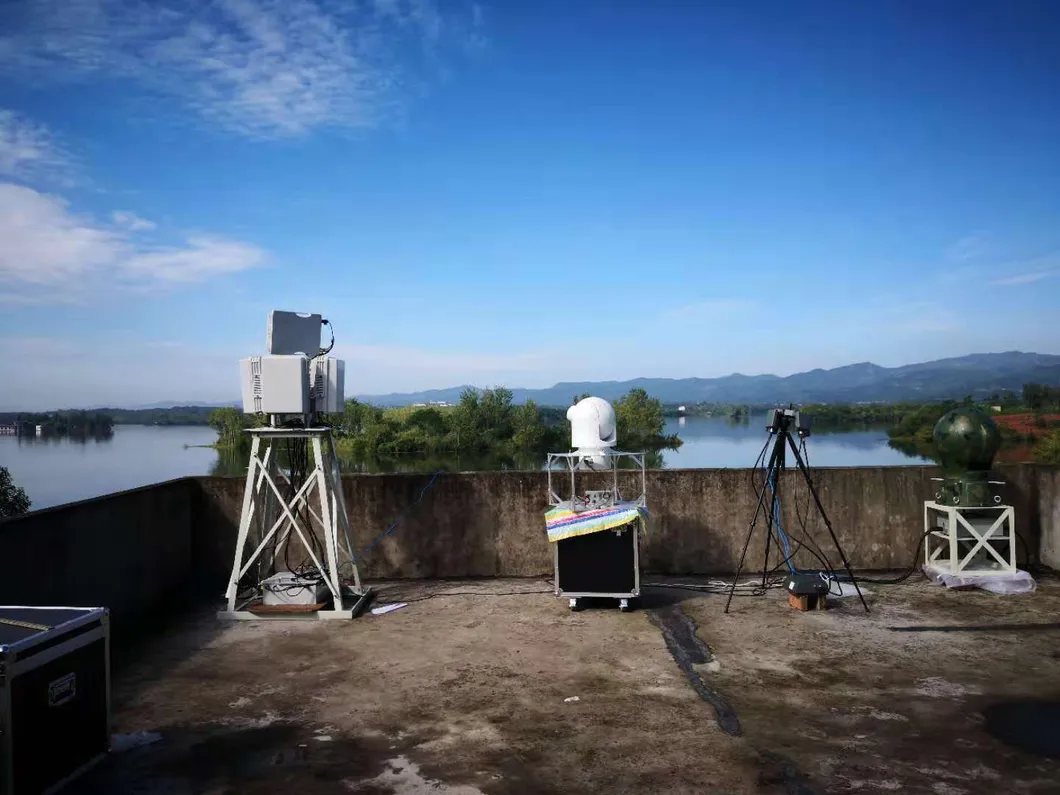

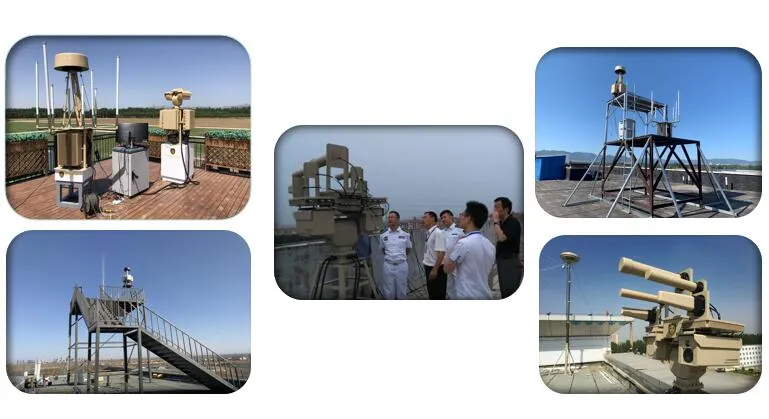

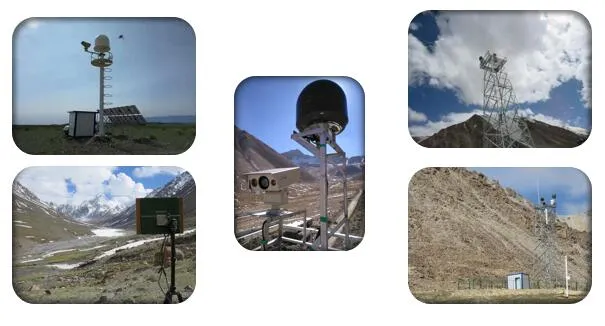

            Project reference
