Digital Micro Mini Control Duel Tech Detector, Intruder Detector (DT-7450C)

Specification:
Digital Micro mini control Duel Tech Detector
Quadruple sealed microwave head+ Dual PIR+ Intelligent digital analysis
MW adopts the latest plane antenna field-effect transistor oscillator
Sealed optical structure, anti-interference of insect or dust, enhance anti-white light performance
Syncretize MW& PIR technology, double processors improve signal processing ability
Adopts energy-saving logic processing(DMF), random dynamic time segmentation(DMT) technology
Dual infrared FRESNEL lens, with downward vision window avoid detecting dead angle.
With tamper switch, hence with reliable function
Digital pulse adjustable, automatic temperature compensation, energy analysis
Advanced pet-immunity recognition technology can distinguish the different signal between intruder and pet
Advanced anti-cloak technology to recognize the intruder with cloak

Detection mode
Dual PIR& MW complex
Detection range:Diameter 15m × 18m
Detection angle:110°
Infrared area:44 or 38
MW frequency:10.525GHz
Installation Height: 1.8m~2.4m(surface or corner installation)
Working voltage:9~16VDC
Working current: 8mA~25mA(about 20mA@12VDC)
Working environment: Temperature: -10~+50;
Relative humidity: 5%~95%RH
Anti EMI: >9000LUX
Anti-white light: >20V/M (20MHz~1000MHz)

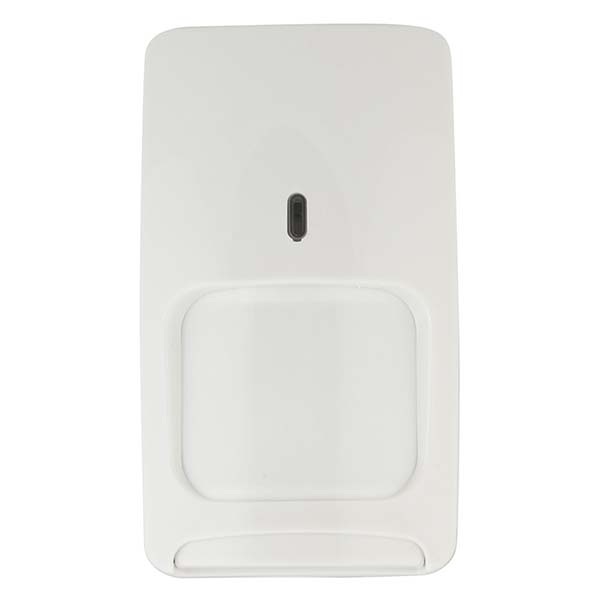

Picture:




Shipment&Service:


About us:
SHENZHEN TAIAN ELECTRONICS Co., Ltd., is an Exporter and Wholesaler for Security Products in China. Our company specializes in PIR sensor, motion ,outdoor sensors ,sirens, alarm panels, GSM series and smokes for home safety and intruder Security alarm systems. Our products are suitable for use in Control center (report to Police), Garden, Bank, and all of the Commercial, Industrial and Civil buildings. For more information, see our products section. Welcome to view our website to know more about us. TAIAN is always looking for friendly cooperation with customers all over the world. We can be your best supplier with wide range of Security Products. Welcome to contact us for OEM & ODM service!
