Beams Active Photoelectric Intruder Detector with Digital Frequency Conversion

Product Description

Beams Active Photoelectric Intruder Detector with Digital Frequency Conversion

Description:
Outdoor used 4 beams digital infrared detector, adopted large-caliber conjoined aspherical lens,
Highlyfocusedinfrared , with longer detecting distance,
Anti-glare interference, lightning protection circuit design.

Model	ABH-50	ABH-100	ABH-150	ABH-200	ABH-250
Outdoor detection distance	50m	100m	150m	200m	250m
Indoor detection distance	150m	300m	450m	600m	750m
Number of beams	4
Response speed	35~700m/s
Alarm output-normal	Normally close and normally open(NC&NO)contact capacity AV/DC 30V/0.5mA
Alarm output-bus	RS-485
Working voltage	DC 8~36V;AC 8~20V
Working current	60mA	65mA	65mA	65mA	70mA
Long-life mode	40mA	32mA	32mA	32mA	40mA
Environment	temperature:-25ºC~55ºC ; humidity:5%~95% (RH)
Tamper output	Normally close(NC) contact capacity AV/DC 24V/0.5mA
Adjust angle	Horizontal:180°(±90°) ; Vertical:±10°
Case material	Germany PC

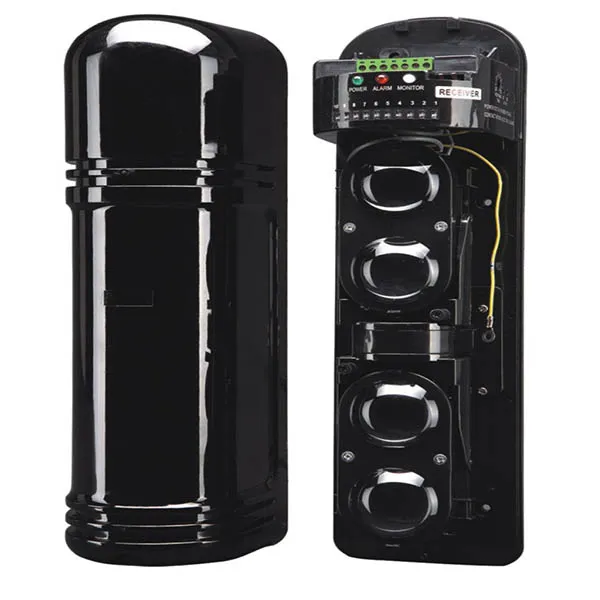

Picture:

Beams Active Photoelectric Intruder Detector with Digital Frequency Conversion
