77GHz Long Range Radar for Drone Uav Collision Avoidance , Pixhawk Flight Controller

Product Description

77GHz Long Range Radar for Drone Uav Collision Avoidance, Pixhawk Flight Controller

^{Hunan NovaSky Electronic Technology Co., Ltd.. was established in 2006. The company focuses on electromagnetic detection, sensing and control technology, and provides product and system integration services for anti-terrorism, search&rescue, high-end security and automotive safety.

Novasky has advanced scientific and technological talents and technologies inthe fields of radar, optoelectronics, software and system engineering.With years of technology accumulation, the company masters key technology including weak life signal detection and tracking algorithms, ground complex environment target detection and tracking algorithm, low-slow small drone detection and tracking algorithm, multi-source perception fusion, electronic reconnaissance and confrontation,etc}

UAVs auto pilot obstacle avoidance sensor, 77GHz radar sensor for anti collision

The dual-beam 77GHz millimeter wave radar for UAV collision avoidance. It is suitable in automatic obstacle avoidance for UAV autonomous flight and fixed-point cruise in all-weather, all-time and all-terrain. MR72-UAV support simultaneous output of distance, speed and angle information of up to 50 target. Featured with low-cost, high accuracy, small& light and low power consumption, MR72-UAV is applicable in agriculture, power, industry, small airship and other fields.

77GHz Long Range Radar for Drone Uav Collision Avoidance, Pixhawk Flight Controller

Radar features:

*Long detection distance

Up to 90 meters for target RCS 5m2, and 40m for high voltage line;

*High detection accuracy

Compared with 24GHz radar, the range resolution of radar is improved up to three times, and better performance for obstacle recognition ability;

*Dual beams simultaneously working mode

Wide FOV in short-range mode ; long detection distance in mid-range mode;

*The pitch angle of mid-range mode is 15.6°

We reduce ground clutter interference when the UAV tilt attitude;

*Strong anti-interference ability

Not affected by light, weather, environmental, noise, and unmanned aerial vehicle electromagnetic interference;

*Compact size

77GHz MMW obstacle avoidance radar is of small size, adaptive to various application;

77GHz Long Range Radar for Drone Uav Collision Avoidance, Pixhawk Flight Controller

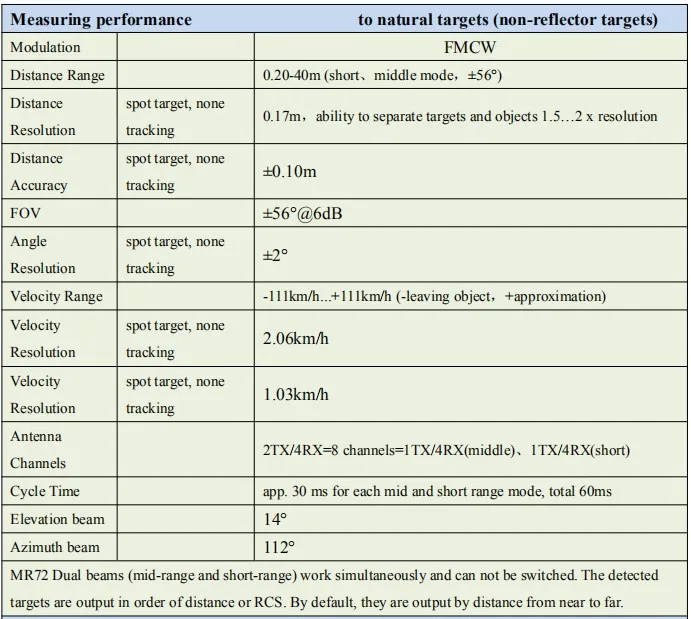

Specification:

77GHz Long Range Radar for Drone Uav Collision Avoidance, Pixhawk Flight Controller

Q: What is the MOQ ?

A: 1PC sample order is acceptable, customized product will be negotiated.

Q: What is the payment terms?
A: T/T, L/C at sight

Q: What is the warranty time?
A: 12 months

Q: What is the lead time?
A: 3~7 days for sample order, bulk order will be 15~30 days around.

Q: What is the type of shipping?
A: By express, by air and by sea (FEDEX, DHL, TNT, UPS)
