Product Description

4 Wired Photoelectric Network Conventional Fire Smoke Detector Alarm for alarm system home security

Main Features:

SR-802PC-4: 4-Wire Network Photoelectric smoke alarm

Power supply non-polar input

Infrared photoelectric sensor

MCU processing, eliminate false alarm

SMT manufacture technology, high stability

Dustproof, mothproof, anti-light interference design

Stainless steel shield, anti-RFI(20V/m-1GHz)

Execute criterion:UL268, GB4715, EN54-7

Technical specification:

Model No.	SR-802PC-4
Operating voltage	DC9~35V
Static current	12mA(NC);500uA(NO)
Alarm current	10mA(NC);18mA(NO)
Sensitivity	0.5dB/m(±0.01dB/M)
Alarm output	Relay output
Installation	Ceiling mounted
Working environment	-10ºC~+50ºC(≤95%RH No congelation)
Dimension	100*48mm (SR-811)

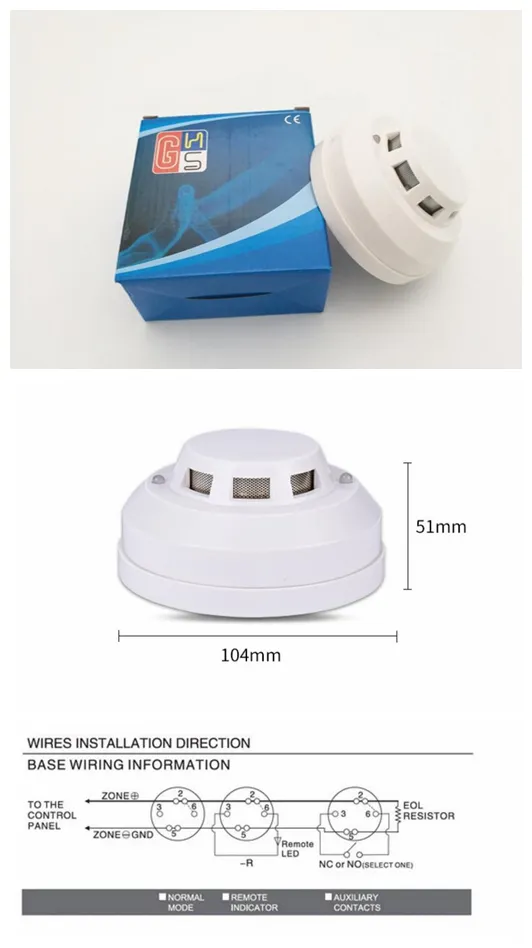

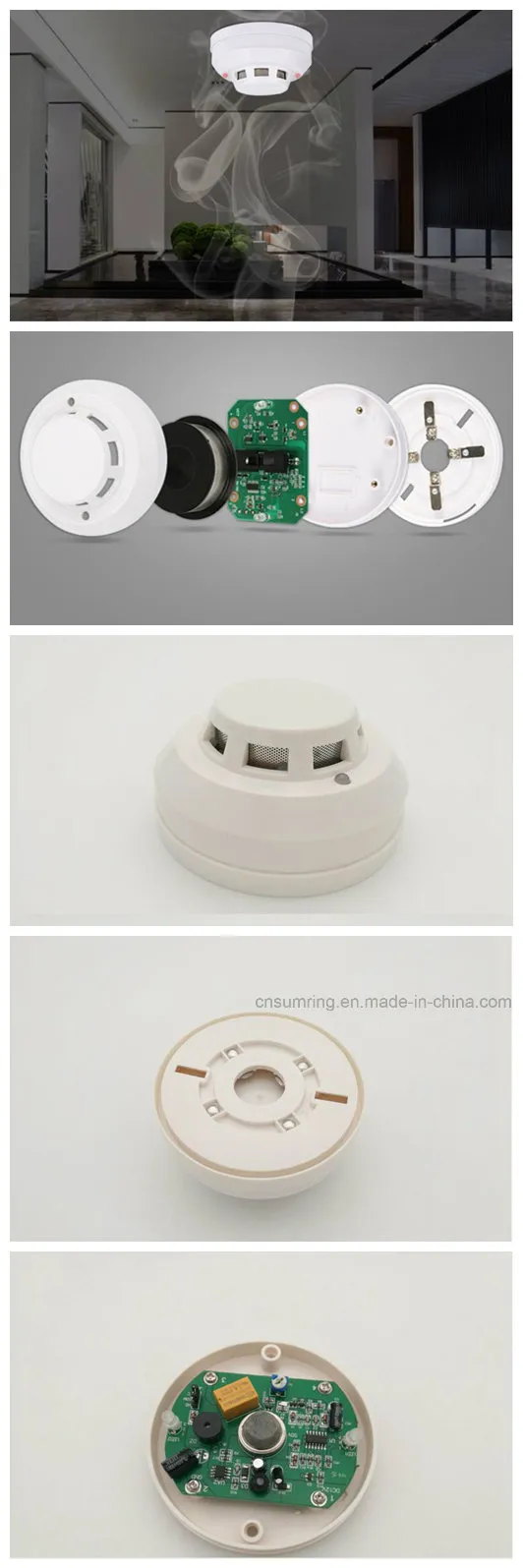

Product Pictures:

4 Wired Photoelectric Network Conventional Fire Smoke Detector Alarm for Alarm System Home Security

Company Information:

Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,Bluetooth module etc

4 Wired Photoelectric Network Conventional Fire Smoke Detector Alarm for Alarm System Home Security
FAQ
Q1. Can I get one sample for test before big order?
A: Sure,you can. Please leave a message we will contact you soon.

Q2. Can I get the item less than MOQ?
A: Yes, you can and the final price will depend on your quantity.

Q3. Can I print my logo on the item?
A: Yes, please contact us.

Q4, What's the lead time when I place order?
A: Small Qty order needs5-7 working days, big Qty order usually needs 7-20 working days after payments arriving. That's depends on order Qty.

Q5,How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
